How to use HDF5 to handle large quantities

The NOMAD schemas and processed data system are designed to describe and manage intricate hierarchies of connected data. This is ideal for metadata and lots of small data quantities, but does not work for large quantities. Quantities are atomic and are always managed as a whole; there is currently no functionality to stream or splice large quantities. Consequently, tools that produce or work with such data cannot scale.

To address the issue, the option to use auxiliary storage systems optimized for large data is implemented. In the following we discuss two quantity types to enable the writing of large datasets to HDF5: HDF5Reference and HDF5Dataset. These are defined in nomad.datamodel.hdf5.

HDF5Reference

HDF5Reference is a metainfo quantity type intended to reference datasets in external raw HDF5 files. It is assumed that the dataset exists in an HDF5 file and the reference is assigned to this quantity. Static methods to read from and write to an HDF5 file are implemented. The following example illustrates how to use these.

from nomad.datamodel import ArchiveSection
from nomad.datamodel.hdf5 import HDF5Reference

class LargeData(ArchiveSection):
    value = Quantity(type=HDF5Reference)

The writing and reading of quantity values to and from an HDF5 file occur during processing. For illustration purposes, we mock this by creating ServerContext. Furthermore, we use this section definition for the data sub-section of EntryArchive.

import numpy as np

from nomad.datamodel import EntryArchive, EntryMetadata
from nomad.datamodel.context import ServerContext
from nomad.files import StagingUploadFiles
from nomad.processing import Upload

upload_files = StagingUploadFiles(upload_id='test_upload', create=True)
upload = Upload(upload_id='test_upload')
upload_files.add_rawfiles('external.h5')
context = ServerContext(upload=upload)

archive = EntryArchive(
    m_context=context,
    metadata=EntryMetadata(upload_id=upload.upload_id, entry_id='test_entry'),
    data=LargeData(),
)

data = np.eye(3)
path = 'external.h5#path/to/data'
HDF5Reference.write_dataset(archive, data, path)
archive.data.value = path
HDF5Reference.read_dataset(archive, path)
array([[1., 0., 0.],
       [0., 1., 0.],
       [0., 0., 1.]])

We use write_dataset to write our data into a raw HDF5 file in test_upload with the filename and dataset location in path. Additionally, archive is required to resolve the upload metadata. We then assign the reference to the dataset to value. To reference a file in another upload, follow the same form for reference values e.g. /uploads/<upload_id>/raw/large_data.hdf5#group/large_field.

Important

When reassigning a different value for an HDF5 archive quantity, it is necessary that the data attributes (shape and type) are preserved.

To read a dataset, use read_dataset and provide a reference. This will return the value cast in the type of the dataset.

HDF5Normalizer

A different flavor of reading HDF5 files into NOMAD quantities is through defining a custom schema and inheriting HDF5Normalizer into base-sections. Two essential components of using HDF5Normalizer class is to first define a quantity that is annotated with FileEditQuantity field to enable one to drop/upload the *.h5 file, and to define relevant quantities annotated with path attribute under hdf5. These quantities are then picked up by the normalizer to extract the values to be found denoted by the path.

A minimum example to import your hdf5 and map it to NOMAD quantities is by using the following custom schema:

definitions:
  name: 'hdf5'
  sections:
    Test_HDF5:
      base_sections:
        - 'nomad.datamodel.data.EntryData'
        - 'nomad.datamodel.metainfo.basesections.HDF5Normalizer'
      quantities:
        datafile:
          type: str
          m_annotations:
            eln:
              component: FileEditQuantity
        charge_density:
          type: np.float32
          shape: [ '*', '*', '*' ]
          m_annotations:
            hdf5:
              path: '/path/to/charge_density'

HDF5Dataset

To use HDF5 storage for archive quantities, one should use HDF5Dataset.

from nomad.datamodel.hdf5 import HDF5Dataset

class LargeData(ArchiveSection):
    value = Quantity(type=HDF5Dataset)

The assigned value will also be written to the archive HDF5 file and serialized as /uploads/test_upload/archive/test_entry#/data/value.

To read the dataset, one shall use the context manager to ensure the file is closed properly when done.

archive.data.value = np.ones(3)

serialized = archive.m_to_dict()
serialized['data']['value']
# '/uploads/test_upload/archive/test_entry#/data/value'
deserialized = archive.m_from_dict(serialized, m_context=archive.m_context)
with deserialized.data.value as dataset:
    print(dataset[:])
# array([1., 1., 1.])

Visualizing archive HDF5 quantities

NOMAD clients (e.g. NOMAD UI) can pick up on these HDF5 serialized quantities and provide respective functionality (e.g. showing a H5Web view).

The H5WebAnnotation class contains the attributes that NOMAD will include in the HDF5 file.

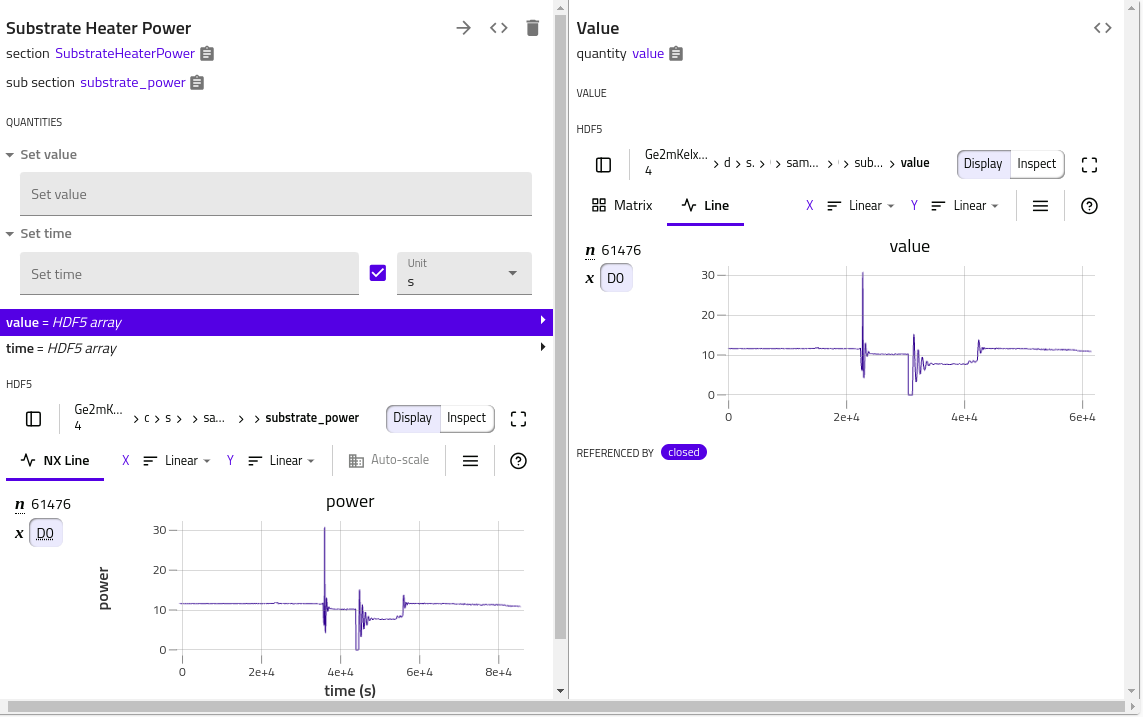

Visualizing archive HDF5 reference quantity using H5Web.

Metadata for large quantities

Attention

This will be implemented and documented soon.
