Develop a NOMAD plugin¶

In this tutorial, we develop a custom NOMAD plugin that extends NOMAD with a domain-specific schema package and a corresponding normalization process. To follow the full development workflow, we use a sintering process as an example, covering everything from creating a plugin repository and defining schemas to implementing normalization. By the end of the tutorial, we will have produced a working plugin that can be tested locally and integrated into a NOMAD Oasis deployment.

What you will learn¶

In this tutorial, you will learn how to:

Create and version-control a NOMAD plugin repository using Git and GitHub
Generate a plugin project using the official NOMAD cookiecutter template
Define custom NOMAD schema packages using YAML and Python
Register schema packages as NOMAD plugin entry points
Implement normalization process that adds functionality to a schema
Test and prepare the plugin for integration into a NOMAD Oasis deployment

Before you begin¶

This tutorial assumes basic familiarity with Python and Git and is intended for users who want to extend NOMAD with custom schemas and normalization process.

Before starting this tutorial, make sure you have the following:

GitHub account
Required to create and manage the plugin repository. You can create a free account at github.com/signup.
Basic understanding of Python
You should be comfortable reading and writing basic Python code, including modules, functions, and classes.
Basic understanding of NOMAD metainfo
Familiarity with NOMAD’s metainfo system is helpful. If needed, review FAIRmat Tutorial 8.
Local or cloud-based development environment
You need either:
- A Linux-based local machine with Python ≥ 3.12, or
- Access to GitHub Codespaces for cloud-based development.

Background concepts used in this tutorial (optional)

This tutorial touches on several common software-development tools and concepts. You do not need to master them in advance, but the links below may be helpful if you are unfamiliar with any of them:

Create a plugin repository¶

First, you will version-control your NOMAD plugin by creating a GitHub repository from the official template. Start from the official GitHub template repository at github.com/FAIRmat-NFDI/nomad-plugin-template.

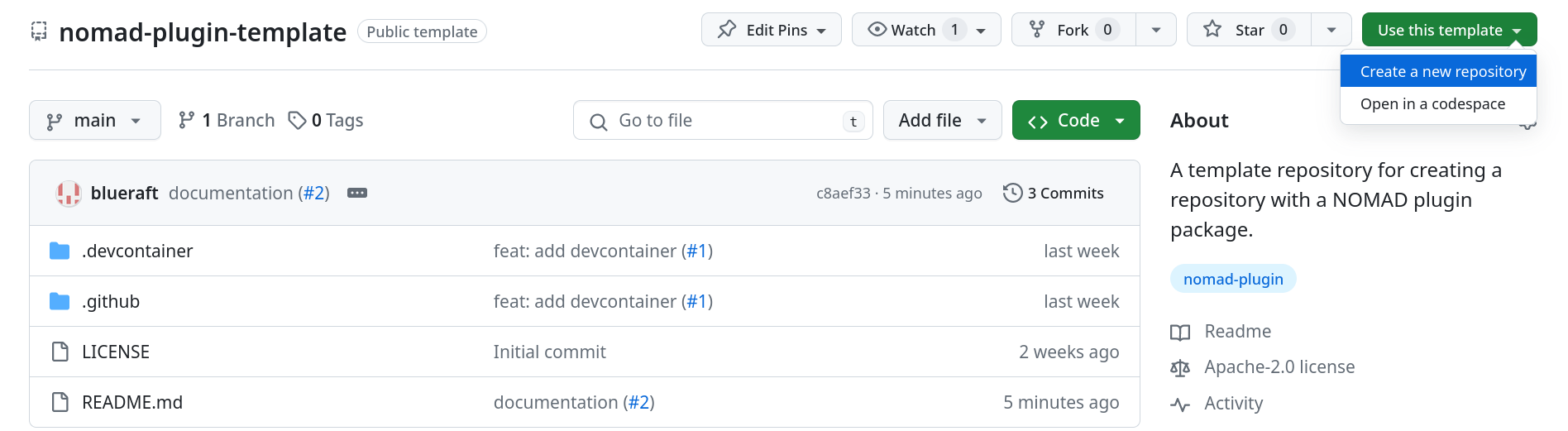

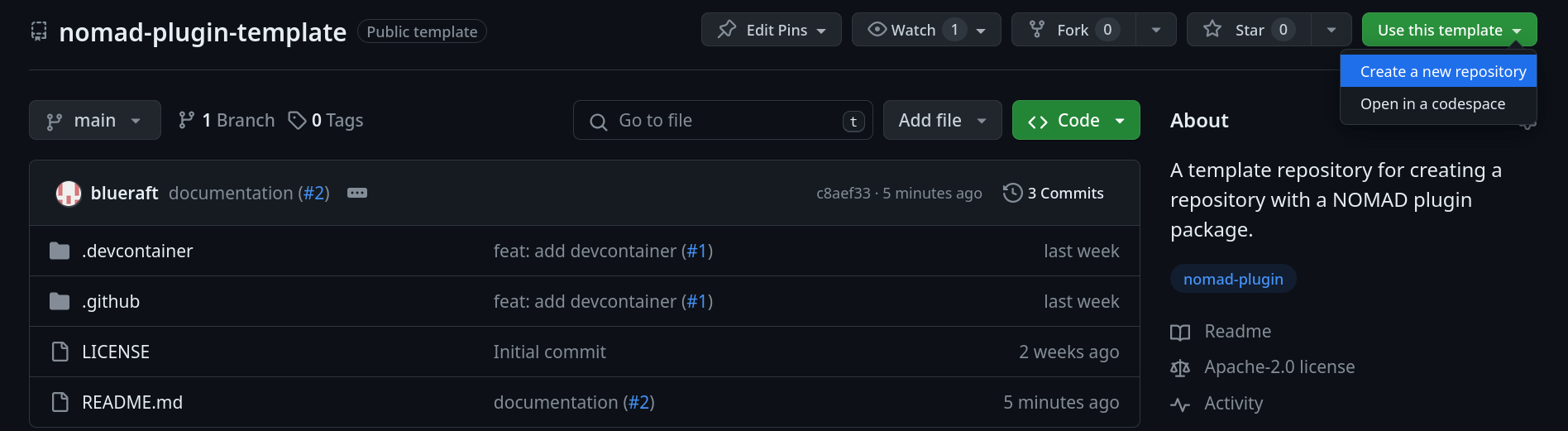

To create a new repository from the template, select Use this template and then choose Create a new repository. You must be logged in to GitHub to see this option.

Enter a repository name (for example, nomad-sintering) and select Create repository to complete the setup.

Generate the plugin structure¶

Next, you will generate the initial structure of the plugin by applying the official NOMAD cookiecutter template.

Choose a development environment¶

You can proceed in one of two ways:

Use GitHub Codespaces (cloud-based development), or
Develop locally on Linux.

Using GitHub codespaces

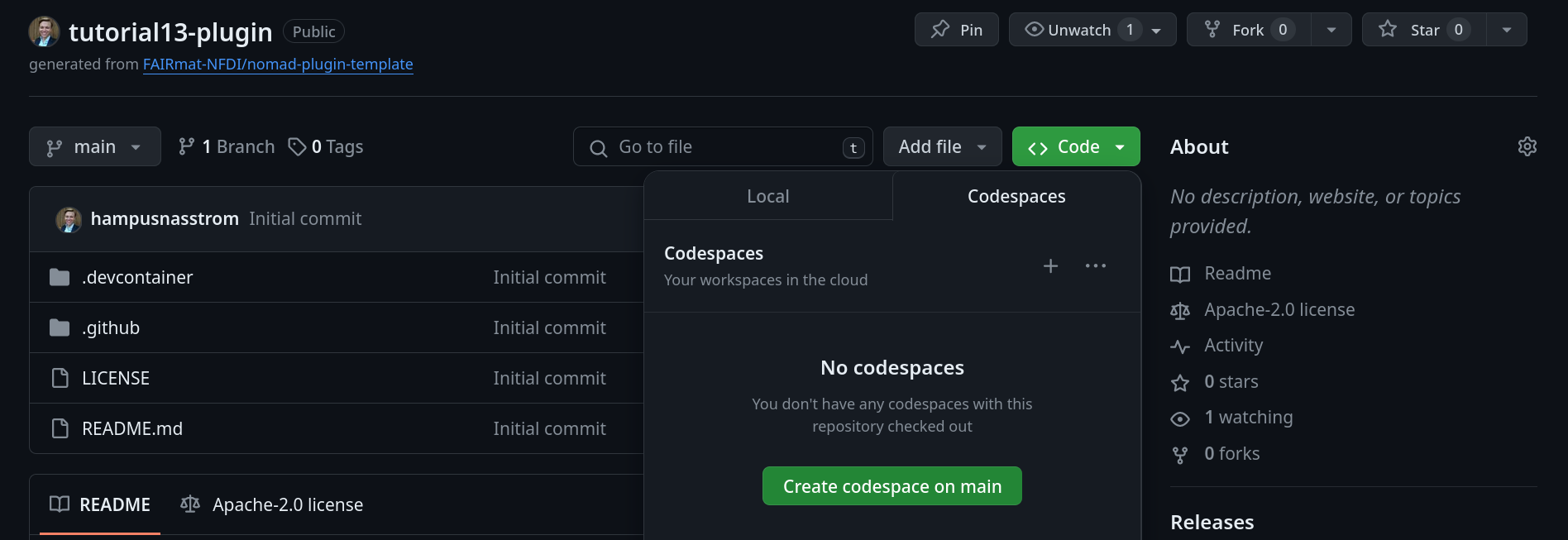

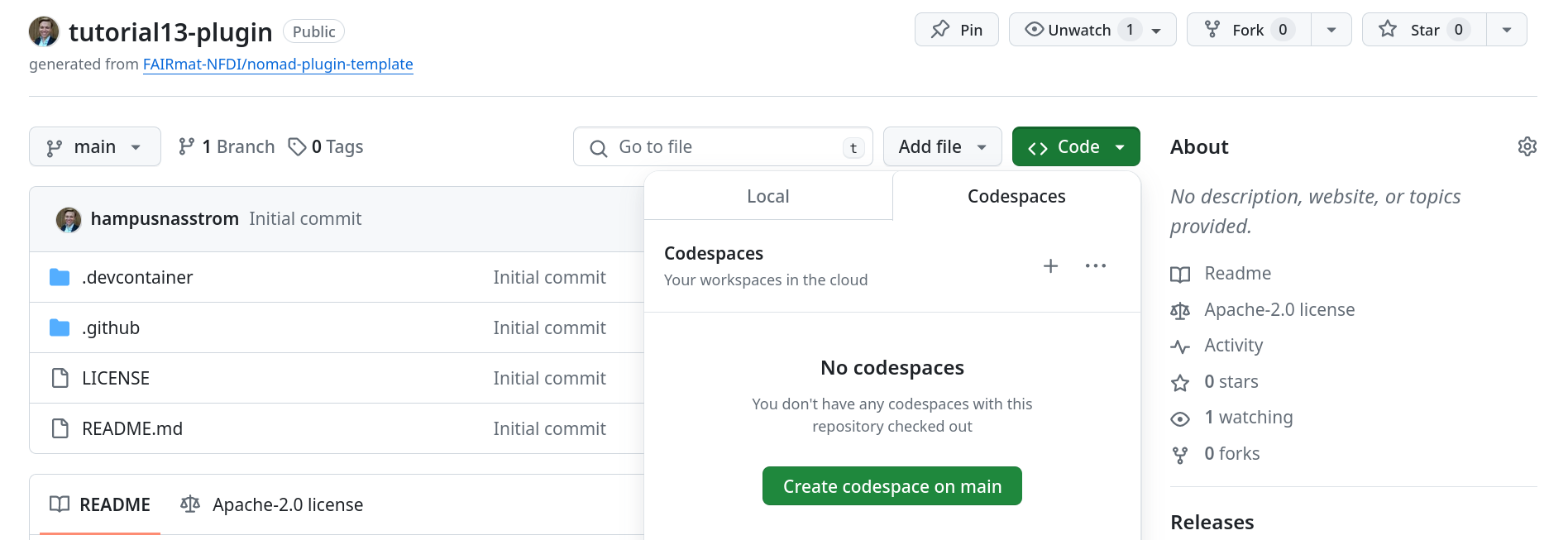

To use a GitHub codespace for the plugin development, click on the <> Code button in the repository and choose Create codespace on main.

Developing locally

If you prefer to work locally on a Linux machine, click on the <> Code button in the repository and choose the “Local” tab, copy the repository URL, and clone it by running:

git clone PATH/COPIED/FROM/REPOSITORY
cd REPOSITORY_NAME

Use cruft to generate the plugin¶

Cruft is a tool that creates projects from Cookiecutter templates and keeps them up to date as the template evolves.

Install cruft

Install cruft, preferably using pipx by running the following:

# pipx is strongly recommended.
pipx install cruft

# If pipx is not an option,
# you can install cruft in your Python user directory.
python -m pip install --user cruft

Run cruft

Generate the plugin structure by running:

cruft create https://github.com/FAIRmat-NFDI/cookiecutter-nomad-plugin

Cookiecutter prompts you for information regarding your plugin. Enter values appropriate for your plugin. For example:

  [1/12] full_name (John Doe): Hampus Näsström
  [2/12] email (john.doe@physik.hu-berlin.de): hampus.naesstroem@physik.hu-berlin.de
  [3/12] github_username (foo): hampusnasstrom
  [4/12] plugin_name (foobar): sintering
  [5/12] module_name (sintering):
  [6/12] short_description (NOMAD example template): A schema package plugin for sintering.
  [7/12] version (0.1.0):
  [8/12] Select license
    1 - MIT
    2 - BSD-3
    3 - GNU GPL v3.0+
    4 - Apache Software License 2.0
    Choose from [1/2/3/4] (1):
  [9/12] include_schema_package [y/n] (y): y
  [10/12] include_normalizer [y/n] (y): n
  [11/12] include_parser [y/n] (y): n
  [12/12] include_app [y/n] (y): n

Selecting y for include_schema_package creates a Python package for the schema.

You have just created a minimal NOMAD plugin with a plugin entry point for a schema package

nomad-sintering/
├── LICENSE
├── MANIFEST.in
├── README.md
├── docs
│   └── ...
├── mkdocs.yml
├── move_template_files.sh
├── pyproject.toml
├── src
│   └── nomad_sintering
│       ├── __init__.py
│       └── schema_packages
│           ├── __init__.py
│           └── mypackage.py
└── tests
    ├── conftest.py
    ├── data
    │   └── test.archive.yaml
    └── schema_packages
        └── test_schema.py

The plugin is generated in a subdirectory. Move the files to the repository root using the provided helper script:

sh CHANGE_TO_PLUGIN_NAME/move_template_files.sh

The CHANGE_TO_PLUGIN_NAME should be substituted by the name of the plugin you've created. In the above case it'll be sh nomad-sintering/move_template_files.sh.

Finally, add the files to Git and commit the changes you have made:

git add -A
git commit -m "Generated plugin from cookiecutter template"
git push

Enable cruft updates

The template repository includes a GitHub Actions workflow that checks for updates to the cookiecutter template. The workflow runs automatically once a week and can also be triggered manually. To enable this functionality, grant the workflow permission to write to the repository and create pull requests.

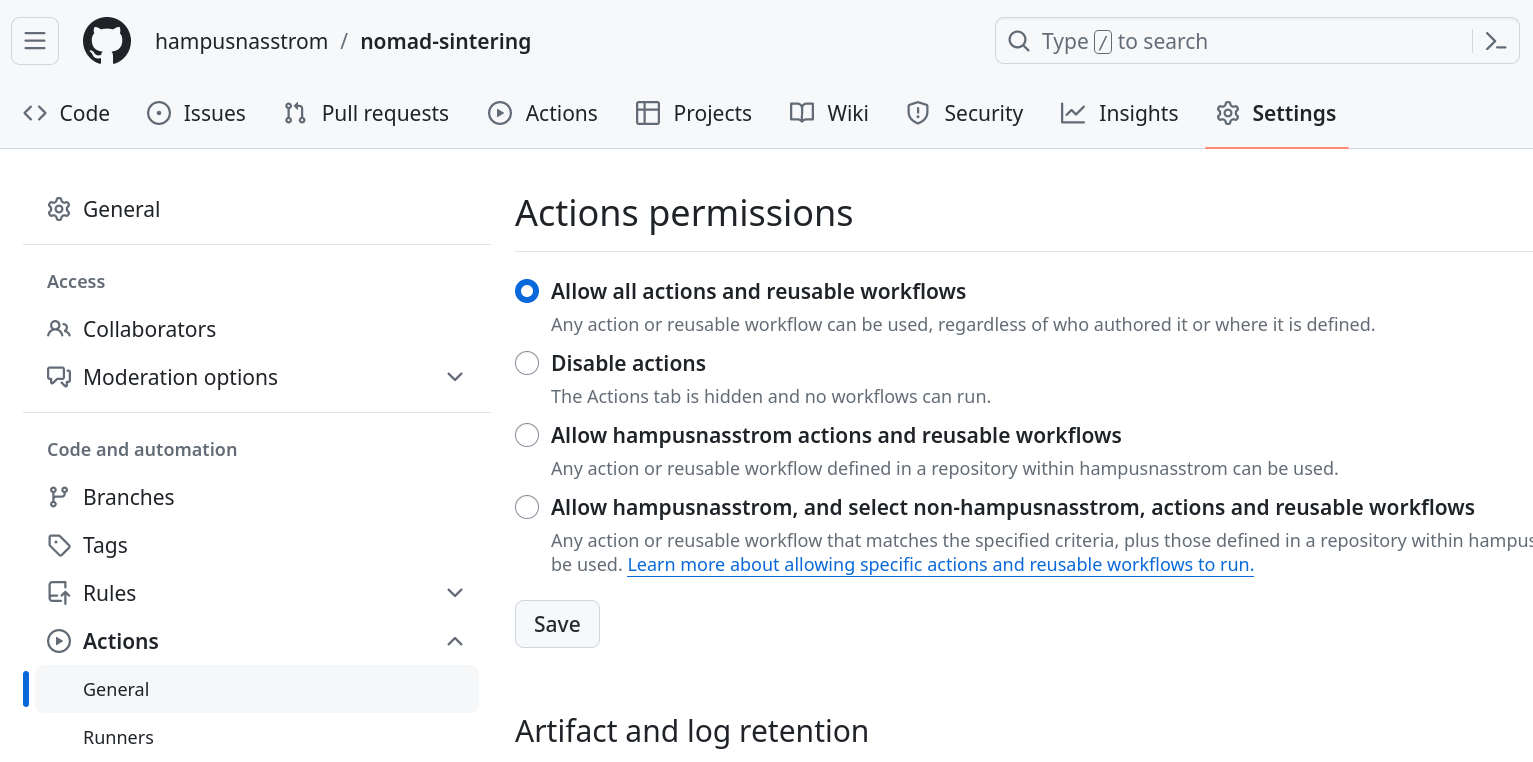

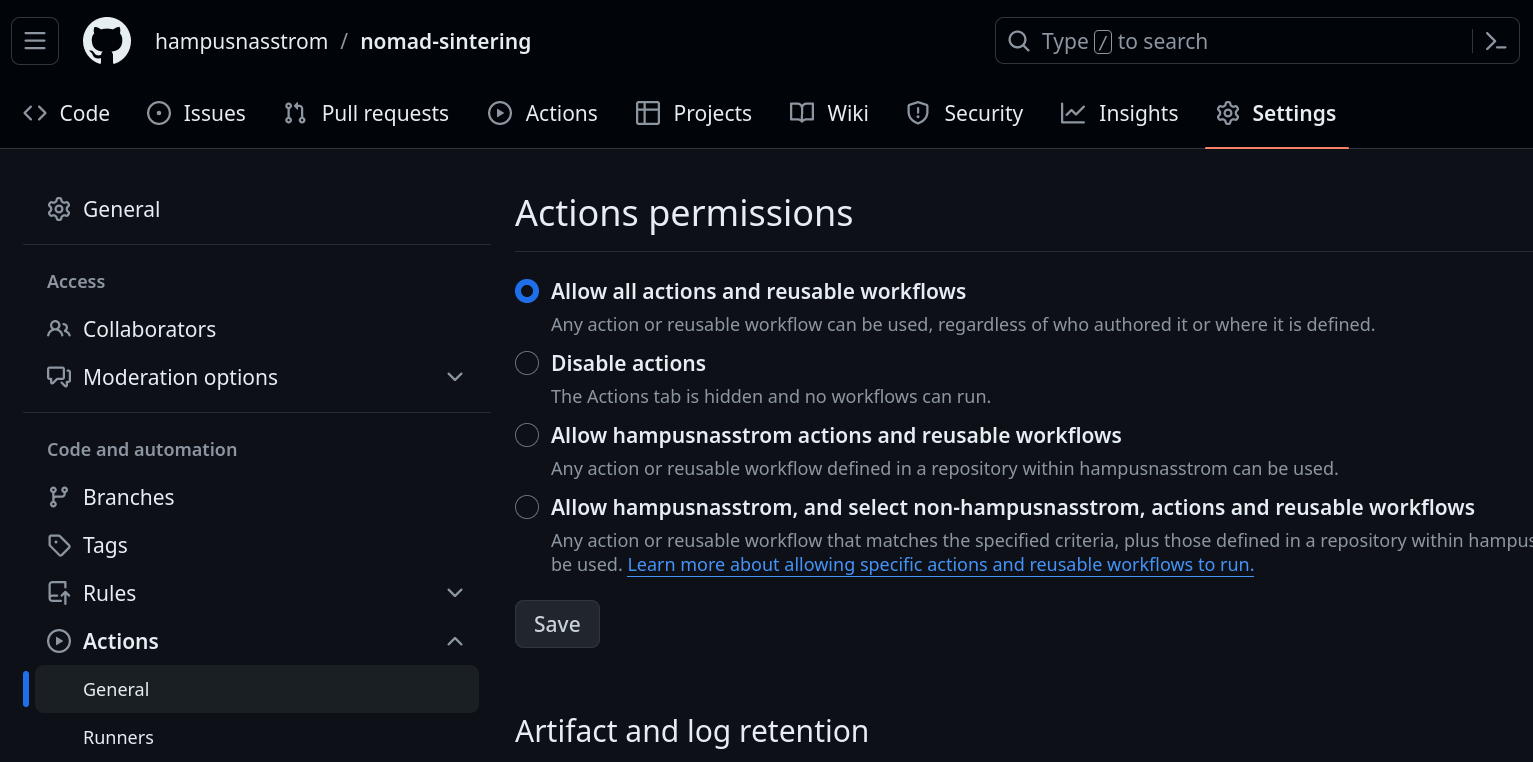

From you plugin repository on GitHub, open the Settings page, and navigate to Actions → General (on the left pane):

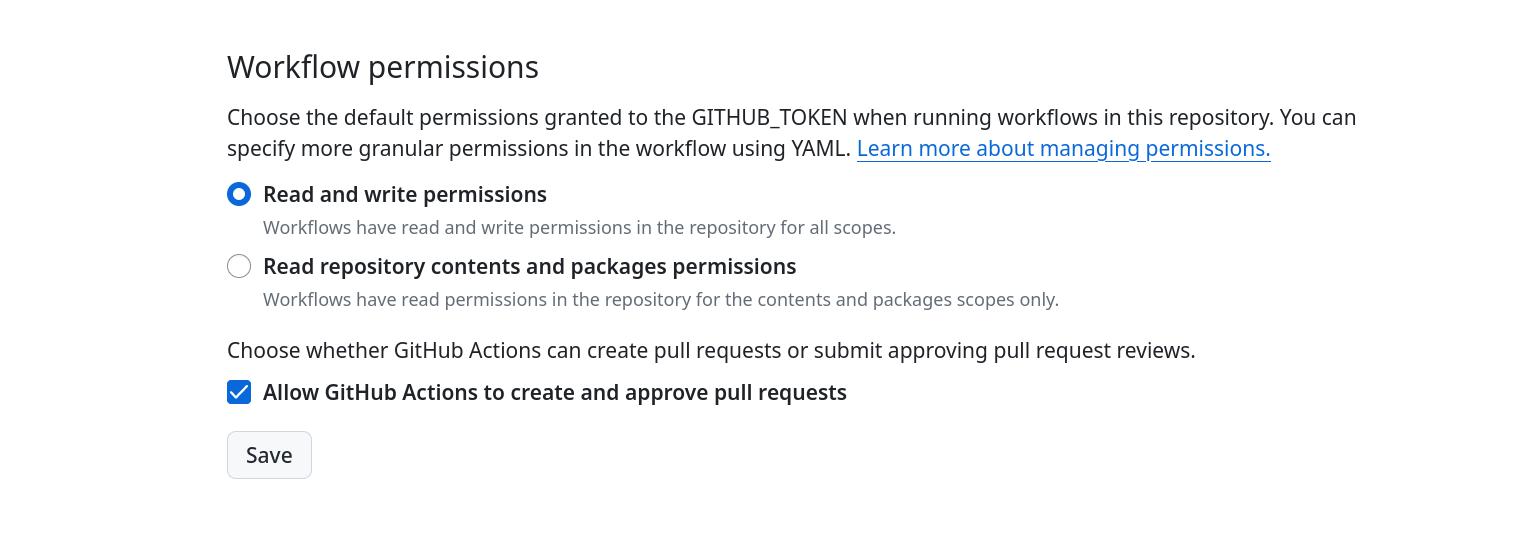

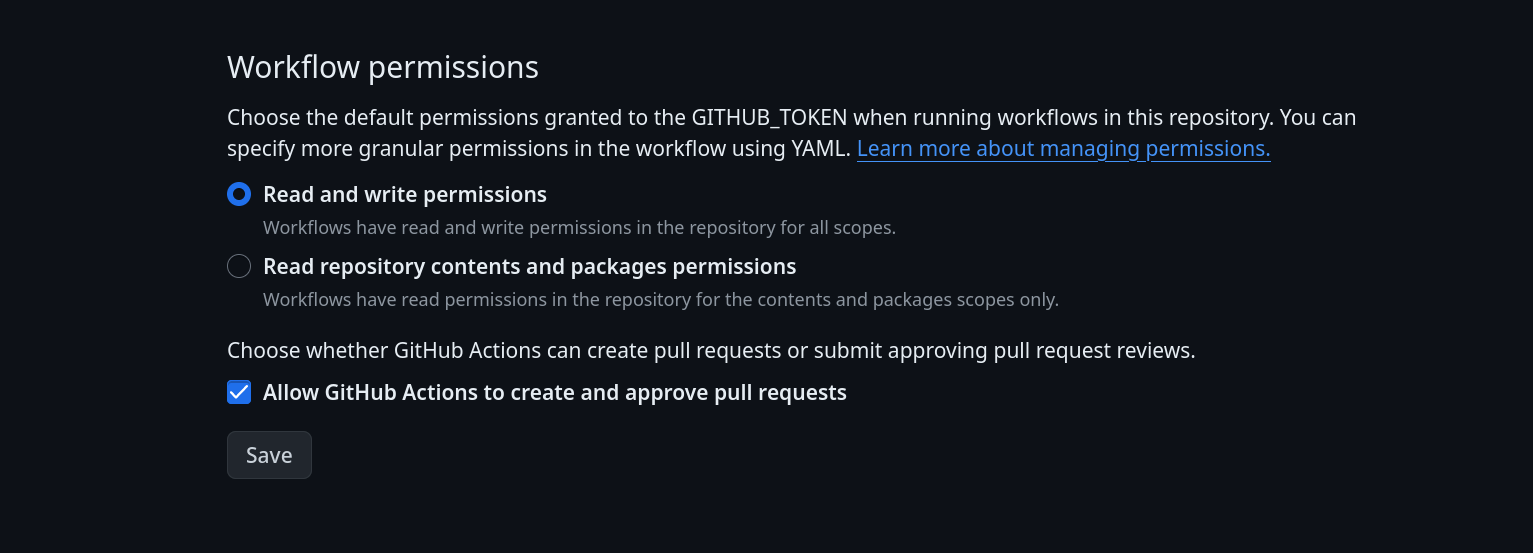

Scroll to the bottom of the page, select the "Read and write permissions" and check the "Allow GitHub Actions to create and approve pull requests" options, and then click Save.

Setting up the python environment¶

In this step, you will set up a Python environment and install the plugin for local development.

Creating a virtual environment

Create a virtual environment using Python 3.12 and activate it:

python3.12 -m venv .pyenv
source .pyenv/bin/activate

Installing the plugin

Install the plugin package in editable mode using the NOMAD package registry:

pip install --upgrade pip
pip install -e '.[dev]' --index-url https://gitlab.mpcdf.mpg.de/api/v4/projects/2187/packages/pypi/simple

Note

Until we have an official PyPI NOMAD release with the latest NOMAD version, make sure to include NOMAD's internal package registry (e.g. via --index-url). The latest PyPI package available today is version 1.2.2 and it misses some updates functional to this tutorial. In the future, when a newer release of nomad-lab will be available ( 1.2.2) you can omit the --index-url.

Add a schema package to the plugin¶

In this step, you will add a custom schema package to the plugin and make it available to NOMAD by converting an existing YAML-based schema into Python classes and registering it as part of the plugin.

Download the YAML schema used in this step

This step uses a YAML-based schema package that defines the structure of the sintering process.

Download sintering.archive.yaml.
Save the file in your working directory.

Alternatively, retrieve the file using the following curl command:

curl -L -o sintering.archive.yaml "https://raw.githubusercontent.com/FAIRmat-NFDI/AreaA-Examples/main/tutorial13/part3/files/sintering.archive.yaml"

Schema packages can also be written directly in Python.

For step-by-step guidance on defining schema packages from scratch, see How-to guide: Define NOMAD schema packages

Generate schema classes¶

You will now use an external package metainfo-yaml2py to convert the yaml schema package into python class definitions.

Install the package:

pip install metainfoyaml2py

Generate the schema classes from the sintering.archive.yaml file and place them in the schema_packages directory, by running the metainfo-yaml2py command.

metainfo-yaml2py sintering.archive.yaml -o src/nomad_sintering/schema_packages -n

The -n flag adds normalize() functions (will be used below), while the -o flag specifies the output directory.

Register the schema package¶

Why registering the schema package is required

Registering the schema package as a plugin entry point makes it discoverable by NOMAD at runtime. Without this registration, NOMAD cannot load the schema package, and the defined sections will not be available during data parsing or normalization.

Register the newly generated schema package as a plugin entry point by updating the metadata defined in the __init__.py file.

Copy the example SchemaPackageEntryPoint provided by the cookiecutter template and update:

The entry point class name
The import path in the load() method
The instance name and referenced class
The entry point name and description

For example:

class SinteringEntryPoint(SchemaPackageEntryPoint):

    def load(self):
        from nomad_sintering.schema_packages.sintering import m_package

        return m_package


sintering = SinteringEntryPoint(
    name='Sintering',
    description='Schema package for describing a sintering process.',
)

Add the corresponding entry point to the pyproject.toml file. Use the existing example at the bottom of the file as a template and update it to match the name of your entry point.

sintering = "nomad_sintering.schema_packages:sintering"

Reinstall the plugin to make the new entry point available:

pip install -e '.[dev]' --index-url https://gitlab.mpcdf.mpg.de/api/v4/projects/2187/packages/pypi/simple

Before you continue, commit your changes to git:

git add -A
git commit -m "Added sintering classes from yaml schema"
git push

Check code formatting¶

The repository uses Ruff to enforce consistent code formatting and linting.
Automatically generated files (for example from metainfo-yaml2py) may not fully comply with these rules, which can cause the formatting check in the GitHub Actions workflow to fail.

If you check the Actions tab of the GitHub repository, you might see that the last commit caused an error in the Ruff format check. To resolve this, check and format the code using Ruff.

Run the following command to check the code:

ruff check .

Apply automatic fixes if any issues are reported:

ruff check . --fix

Commit the formatting changes:

git add -A
git commit -m "Ruff linting"
git push

Implement a normalize function¶

In this step, you add normalization process to the schema by implementing a normalize() method. Normalization allows schema sections to derive structured values programmatically using Python.

Example input file used for normalization

This example uses a simple CSV recipe file that describes a sintering process. Each row represents a processing step and will be converted into a corresponding TemperatureRamp section during normalization.

Download sintering_example.csv.
Save the file in your working directory.

Alternatively, retrieve the file using the following curl command:

curl -L -o tests/data/sintering_example.csv "https://raw.githubusercontent.com/FAIRmat-NFDI/AreaA-Examples/main/tutorial13/part3/files/sintering_example.csv"

Add input file support to the schema¶

Add a new Quantity to the Sintering class to reference the recipe file:

data_file = Quantity(
    type=str,
    description='The recipe file for the sintering process.',
    a_eln={
        "component": "FileEditQuantity",
    },
)

The a_eln annotation configures the quantity to accept file uploads in the NOMAD GUI using the FileEditQuantity component.

Write the normalize function code¶

Next, implement the normalize() method to read the input file and populate the schema programmatically.

Implement the normalization process as follows:

Check if the data file is provided using if self.data_file, if so, open it via archive.m_context.raw_file() method and read it with pd.read_csv(file):
```
if self.data_file:
with archive.m_context.raw_file(self.data_file) as file:
    df = pd.read_csv(file)
```

Create a list of processing steps by iterating over the data frame and instantiating TemperatureRamp section:

    steps = []
    for i, row in df.iterrows():
    step = TemperatureRamp()
    step.name = row['step name']
    step.duration = ureg.Quantity(float(row['duration [min]']), 'min')
    step.initial_temperature = ureg.Quantity(row['initial temperature [C]'], 'celsius')
    step.final_temperature = ureg.Quantity(row['final temperature [C]'], 'celsius')
    steps.append(step)

The code snippet above uses the NOMAD unit registry to handle all the units.

Assign the generated list to self.steps:
```
self.steps = steps
```
Add the required imports of pandas and the NOMAD unit registry to the top of sintering.py file:
```
from nomad.units import ureg
import pandas as pd
```

Complete normalize implementation

  from nomad.units import ureg
  import pandas as pd


  class Sintering(Process, EntryData, ArchiveSection):
      '''
      Class autogenerated from yaml schema.
      '''
      m_def = Section()
      steps = SubSection(
          section_def=TemperatureRamp,
          repeats=True,
      )
      data_file = Quantity(
          type=str,
          description='The recipe file for the sintering process.',
          a_eln={
              "component": "FileEditQuantity",
          },
      )
      def normalize(self, archive, logger: 'BoundLogger') -> None:
          '''
          The normalizer for the `Sintering` class.

          Args:
              archive (EntryArchive): The archive containing the section that is being
              normalized.
              logger (BoundLogger): A structlog logger.
          '''
          super().normalize(archive, logger)
          if self.data_file:
              with archive.m_context.raw_file(self.data_file) as file:
                  df = pd.read_csv(file)
              steps = []
              for i, row in df.iterrows():
                  step = TemperatureRamp()
                  step.name = row['step name']
                  step.duration = ureg.Quantity(float(row['duration [min]']), 'min')
                  step.initial_temperature = ureg.Quantity(row['initial temperature [C]'], 'celsius')
                  step.final_temperature = ureg.Quantity(row['final temperature [C]'], 'celsius')
                  steps.append(step)
              self.steps = steps

Test the normalize function¶

Run NOMAD processing on a test archive file to verify that the normalize() method is executed.

Create a test file¶

Create a file ending in .archive.yaml (or .archive.json) that defines a data section with:

m_def: the fully qualified name of your Sintering section
data_file: the CSV recipe file

data:
  m_def: nomad_sintering.schema_packages.sintering.Sintering
  data_file: sintering_example.csv

We can once again grab this file from the tutorial repository and place it in the tests/data directory using curl

curl -L -o tests/data/test_sintering.archive.yaml "https://raw.githubusercontent.com/FAIRmat-NFDI/AreaA-Examples/main/tutorial13/part3/files/test_sintering.archive.yaml"

Attention

You might need to modify the package name for the m_def if you called your python module something other than nomad_sintering

Run the NOMAD CLI¶

Parse the test archive file and write the normalized output to a JSON file:

nomad parse tests/data/test_sintering.archive.yaml > normalized.archive.json

You will see an error similar to:

could not normalize section (normalizer=MetainfoNormalizer, section=Sintering, exc_info=Cannot convert from 'milliinch' ([length]) to 'second' ([time]))

This happens because ureg interprets 'min' as milli-inch instead of minutes. Fix this by changing the duration unit from 'min' to 'minutes' in sintering.py.

def normalize(self, archive: 'EntryArchive', logger: 'BoundLogger') -> None:
    """
    The normalizer for the `Sintering` class.

    Args:
        archive (EntryArchive): The archive containing the section that is being
        normalized.
        logger (BoundLogger): A structlog logger.
    """
    super().normalize(archive, logger)
    if self.data_file:
        with archive.m_context.raw_file(self.data_file) as file:
            df = pd.read_csv(file)
        steps = []
        for i, row in df.iterrows():
            step = TemperatureRamp()
            step.name = row['step name']
            # Changed 'min' to 'minutes' here:
            step.duration = ureg.Quantity(float(row['duration [min]']), 'minutes')
            step.initial_temperature = ureg.Quantity(row['initial temperature [C]'], 'celsius')
            step.final_temperature = ureg.Quantity(row['final temperature [C]'], 'celsius')
            steps.append(step)
        self.steps = steps

Since you installed the package in editable mode the changes will take effect as soon as you save. Rerun the nomad parse command. The output file normalized.archive.json should now contain the populated steps section.

The beginning of that file should look something like:

{
  "data": {
    "m_def": "nomad_sintering.schema_packages.sintering.Sintering",
    "name": "test sintering",
    "datetime": "2024-06-04T16:52:23.998519+00:00",
    "data_file": "sintering_example.csv",
    "steps": [
      {
        "name": "heating",
        "duration": 1800.0,
        "initial_temperature": 25.0,
        "final_temperature": 300.0
      },
      {
        "name": "hold",
        "duration": 3600.0,
        "initial_temperature": 300.0,
        "final_temperature": 300.0
      },
      {
        "name": "cooling",
        "duration": 1800.0,
        "initial_temperature": 300.0,
        "final_temperature": 25.0
      }
    ]
  },
...

Next steps¶

The next step is to include your new schema in a custom NOMAD Oasis. For more information on how to configure a NOMAD Oasis you can have a look at How-to guides/NOMAD Oasis/Configuration.

Before you continue, commit your changes to git:

git add -A
git commit -m "Added a normalize function to the Sintering schema"
git push
